Inline Planetary Gearbox•High Precision

KPLF
KPLF
KPLF

KPLF

KPLF is our highly successful high precision gearbox series.

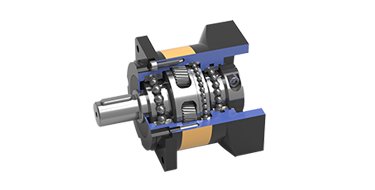

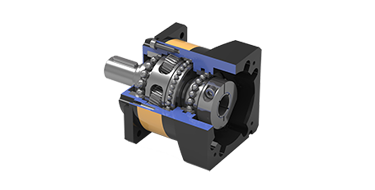

All KPLF planetary gearbox adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision applications, KPLF would be your great option for planetary gearhead.

Options

  • Output shaft key way, without key be available.

    Synthetic lubrication grease, low temperature grease available.

    Adaptor flange solution available.

Features

 Ratio: 3 - 100

 Backlash: 3 - 11 arcmin

 Nominal Output Torque: 14 - 2050 Nm

Technical data Collapse all Expand all
