Inline Planetary Gearbox•High Precision

KPX
KPX
KPX

KPX

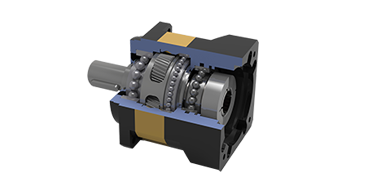

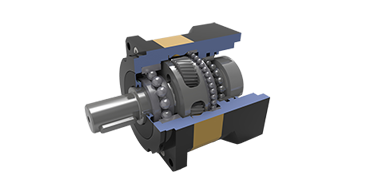

KPX is our highly successful high precision gearbox series.

All KPX planetary gearbox adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision  applications, KPX  would be your great option for planetary gearhead.

Options

  • Output shaft key way, without key be available.

    Synthetic lubrication grease, low temperature grease available.

    Adaptor flange solution available.

Features

 Ratio: 3 - 100

 Backlash: 6 - 8 arcmin

 Nominal Output Torque: 14 - 1500 Nm

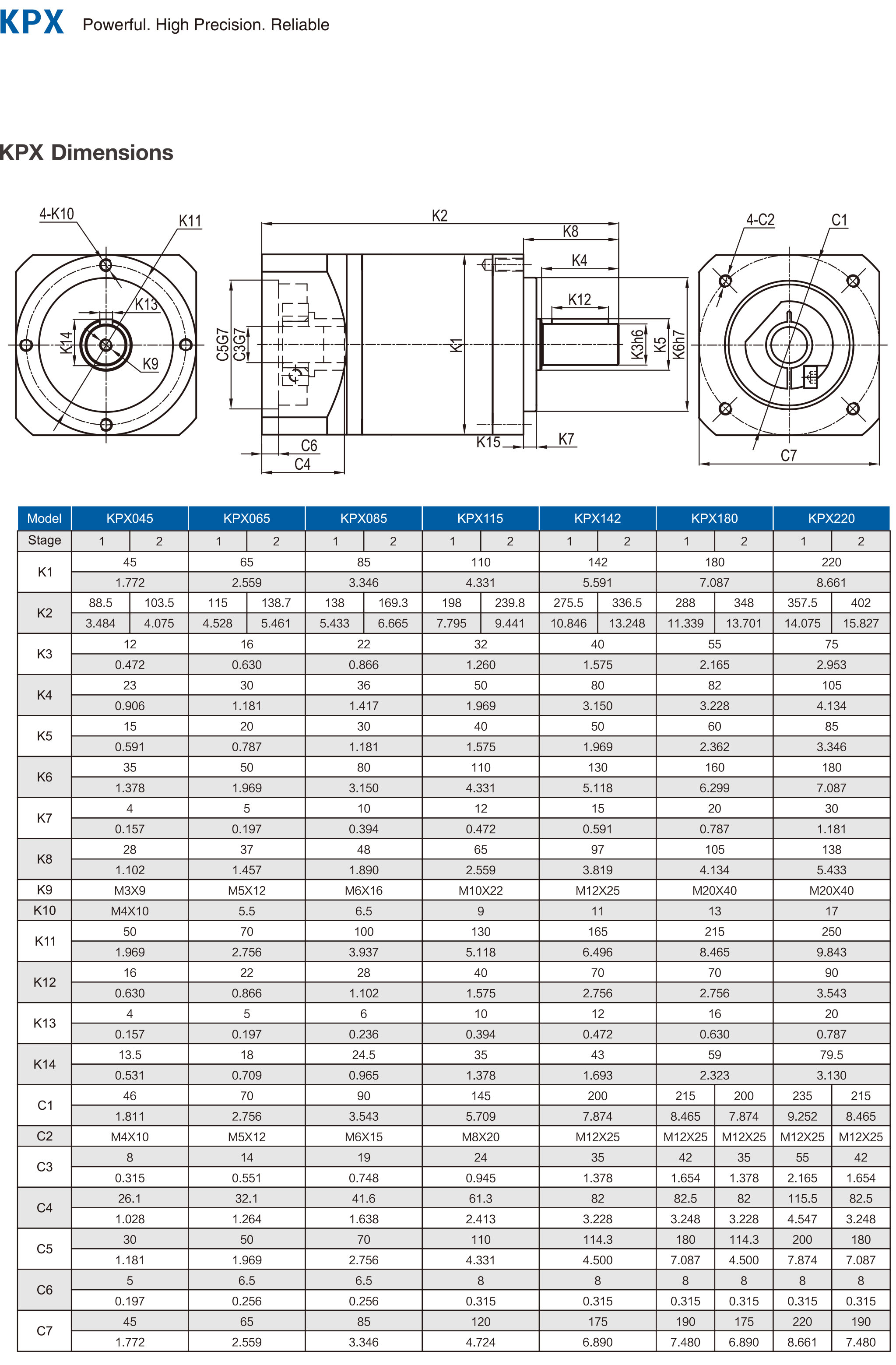

Technical data Collapse all Expand all
