CaesarPlanetary® | Precision Planetary Gearbox

XAR
XAR
XAR

XAR

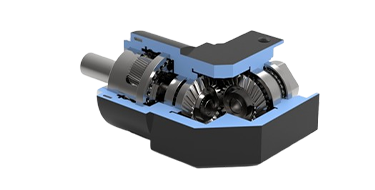

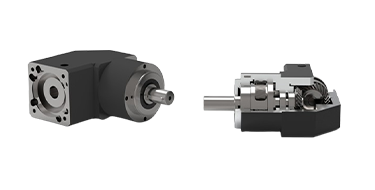

The XAR right angle servo gearbox family are significantly featured by the helical gearing system, patented Master CagedSpindle planetary carrier and integrated gear housing technology. It provides high precision and ultra precision with solid output shaft connection option.

Options

  • Output shaft key way, without key be available.

    Synthetic lubrication grease, low temperature grease available.

    Adaptor flange solution available.

Features

 Ratio: 3 - 100

 Backlash: 3 - 9 acrmin

 Nominal Output Torque: 42 - 2050 Nm

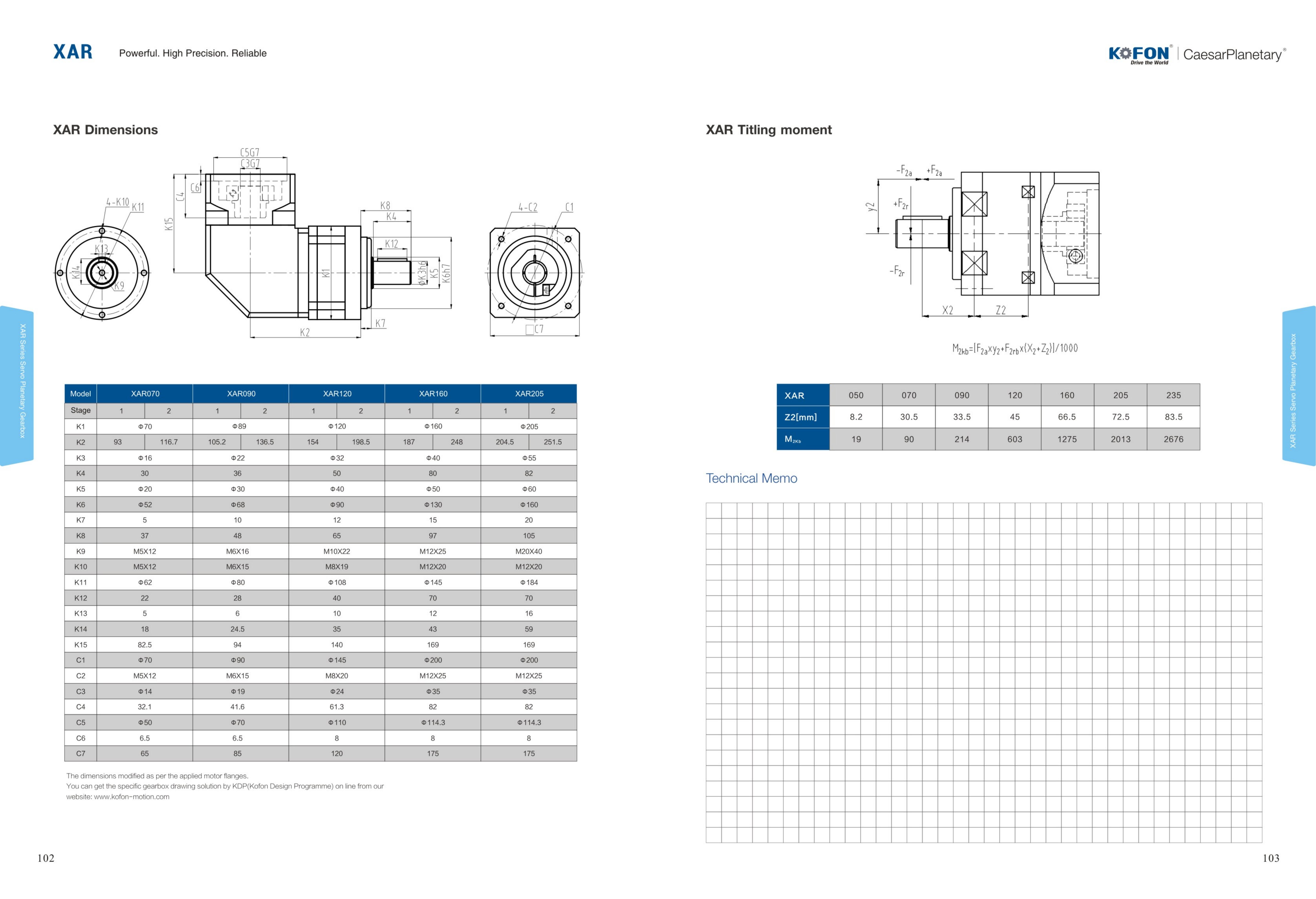

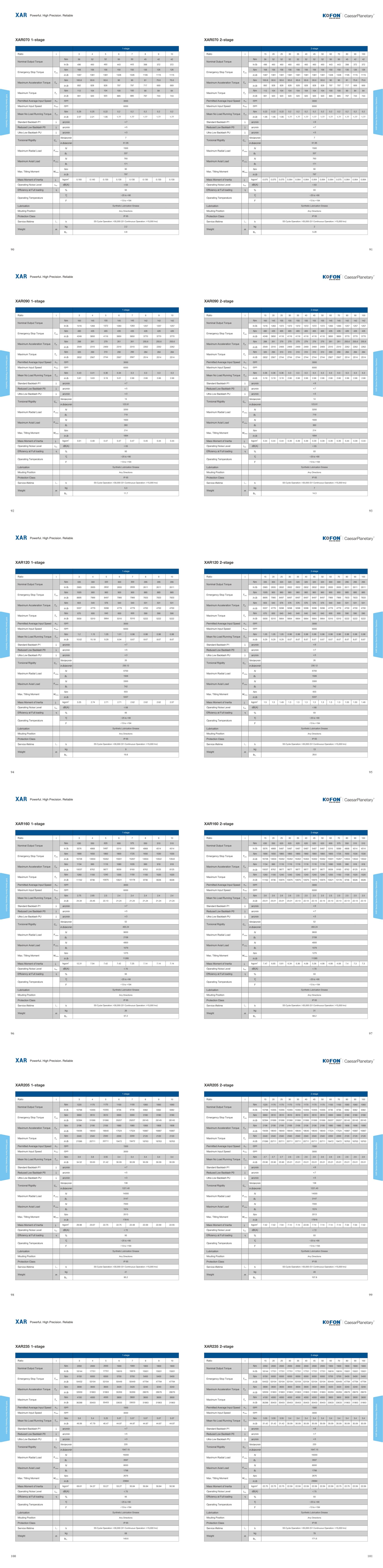

Technical data Collapse all Expand all
