Inline Planetary Gearbox•Economic Type

SPL

SPL

SPL is our highly successful high precision gearbox series.

As our mostly cost-effective servo gearbox family, the SPL powered by the helical gearing system and high precision gear tooling. The SPL is the great servo gearbox solutions for the standard precision motion related manufacturing applications.

Options

  • Output shaft key way, without key be available.

    Synthetic lubrication grease, low temperature grease available.

    Adaptor flange solution available.

Features

 Ratio: 3 - 512

 Backlash: 8 - 17 arcmin

 Nominal Output Torque: 12 - 1850 Nm

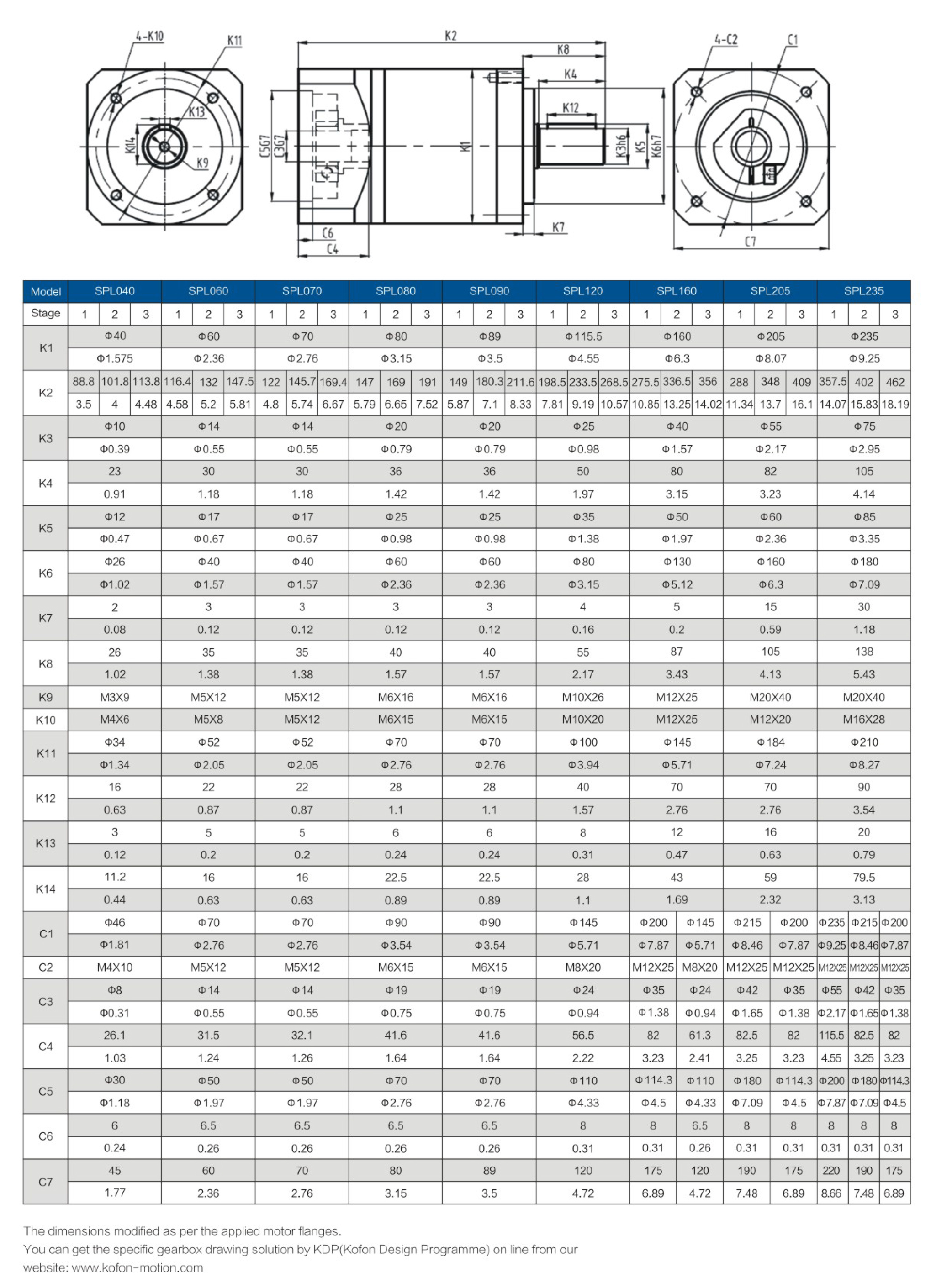

Technical data Collapse all Expand all

Industrial Applications

Downloads
