Elitewave® | Ultra Precision Strain Wave Gear
KSB-HO

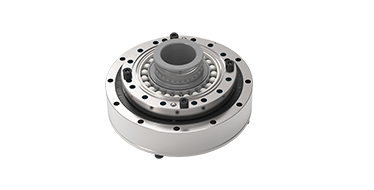

Strain Wave Gear KSB-HO Series Simplicity Box
Hollow shaft open flexspline
Options
Features
Ratio: 14 - 50
Backlash: 0 - 20 acrsec
Nominal Output Torque: 5.1 - 503 Nm
Technical data Collapse all Expand all
-

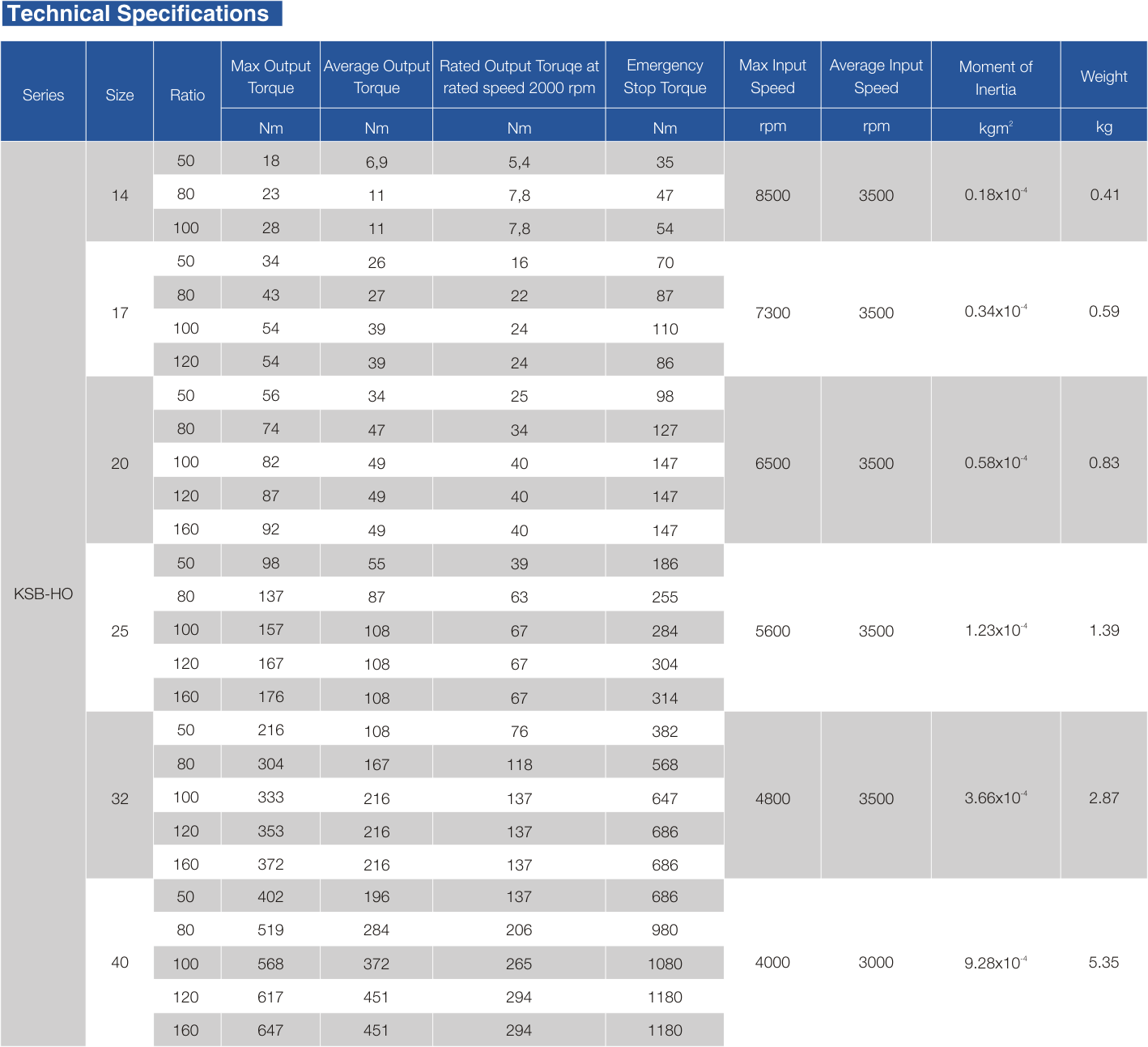

Gearbox Performance Data
-
Gearbox Dimensions
-

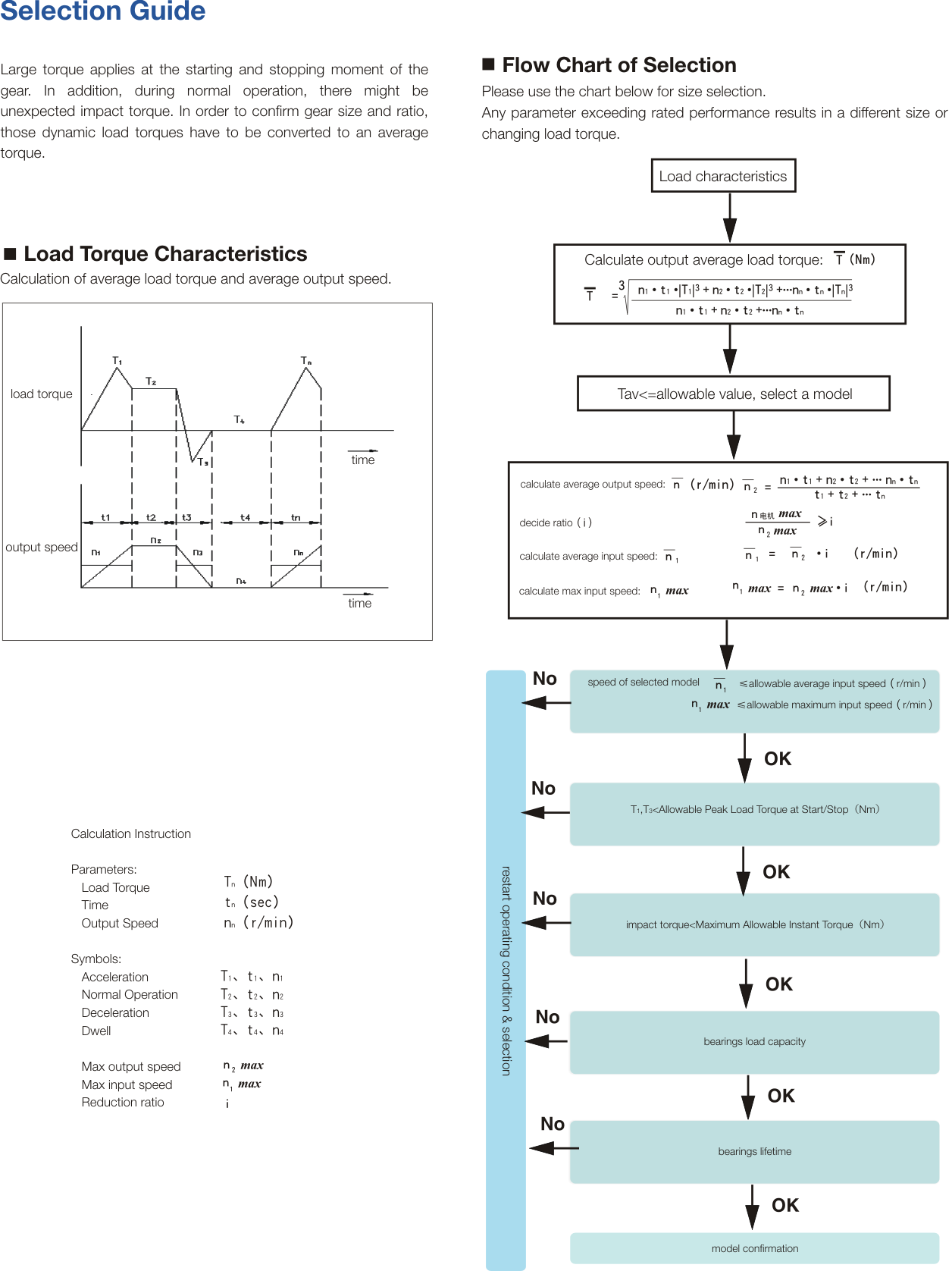

Gearbox Selection Instructions
-

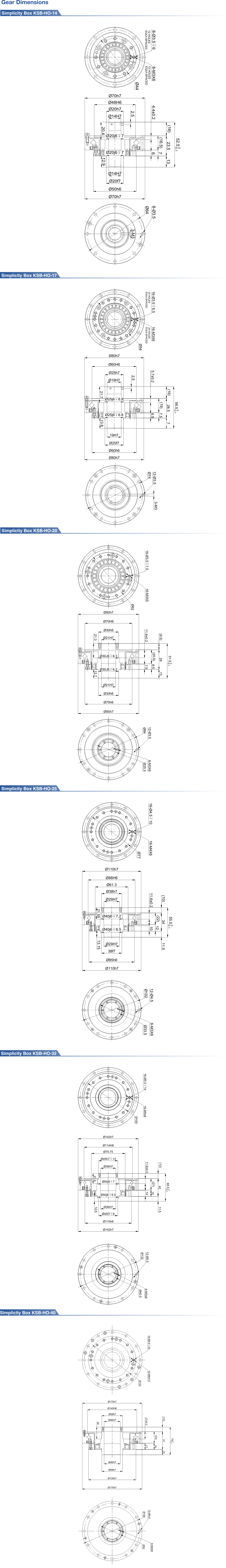

Gearbox Drawings
Other technical question please contact our overseas sales team: info@kofon-motion.com
-

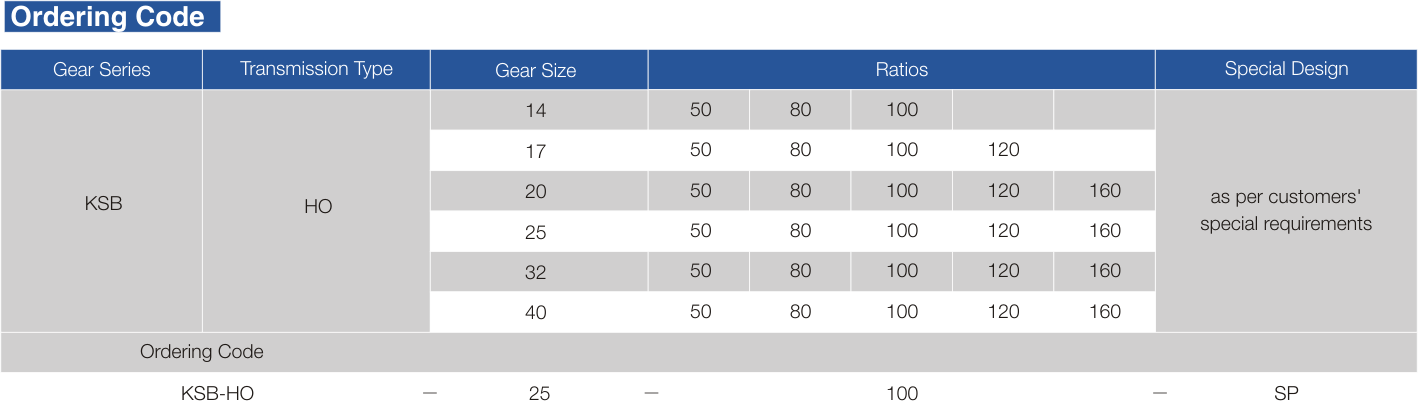

Gearbox Ordering Instructions
