Strain Wave Gear for Multi-Axis Robot Power Unit

In the realm of industrial automation, the multi-axis power execution robotics unit stands as a cornerstone of modern manufacturing and inspection processes. Among the critical components enabling the precision and reliability of these robotic systems, strain wave gears have emerged as a leading solution. Their unique combination of high torque density, compact design, and exceptional accuracy makes them indispensable in applications requiring precise motion control, such as routing inspection robots.

This application example highlights the integration of strain wave gears in the wrist axis of a 2-axis robot designed for routing inspection tasks. The demanding nature of this application necessitates strain wave gears that are backlash-free, capable of handling high loads, and exhibit high torsional stiffness. Additionally, low operational noise and an extended service lifetime are critical to ensure uninterrupted performance in industrial environments. These requirements are met by our advanced strain wave gear technology, which has been rigorously tested and optimized for such high-performance applications.

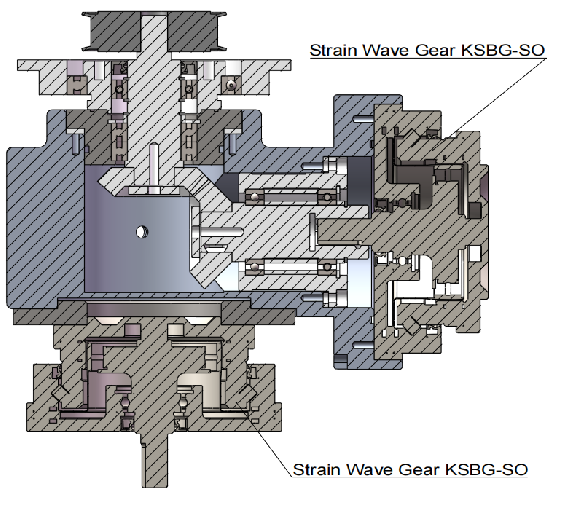

The engineering design of this robotic unit is supported by our KSBG-SO Simplicity Box units, a specialized series of strain wave gears tailored for industrial robotics. A standout feature of the KSBG-SO series is its integration of a powerful crossed roller bearing, which significantly enhances the unit's ability to withstand tilting moments. This is particularly crucial in robotic joints, where the output-side bearing of the strain wave gear is often subjected to substantial mechanical stress. By incorporating this robust bearing design, the KSBG-SO units ensure reliable operation even under the most challenging conditions, making them an ideal choice for industrial robot applications.

In this specific design, the power execution robot unit is further enhanced by the integration of a high-precision spiral bevel gear. The optimized tooth engagement of the spiral bevel gear contributes to superior noise control, ensuring that the robotic system operates quietly and efficiently. This combination of strain wave gears and spiral bevel gears creates a synergistic effect, delivering both precision and durability in a compact form factor.

Another key advantage of this design is its modularity. The strain wave gear unit can be easily disassembled for maintenance or replacement without requiring a complete disassembly of the robot power unit. This modular approach not only reduces downtime but also simplifies the maintenance process, making the system more user-friendly and cost-effective over its lifecycle.

The application of strain wave gears in this multi-axis power execution robotics unit underscores their versatility and reliability in demanding industrial environments. By leveraging the unique benefits of strain wave gear technology, such as high loading capacity, low backlash, and compact design, this robotic system achieves unparalleled performance in routing inspection tasks. Furthermore, the integration of advanced bearing systems and modular design principles ensures that the system remains robust, maintainable, and future-proof.

In conclusion, the use of strain wave gears in this application exemplifies their critical role in advancing robotic technology. As industrial automation continues to evolve, the demand for high-performance strain wave gears will only grow, solidifying their position as a key enabler of precision and efficiency in modern robotics.
